Core Concepts

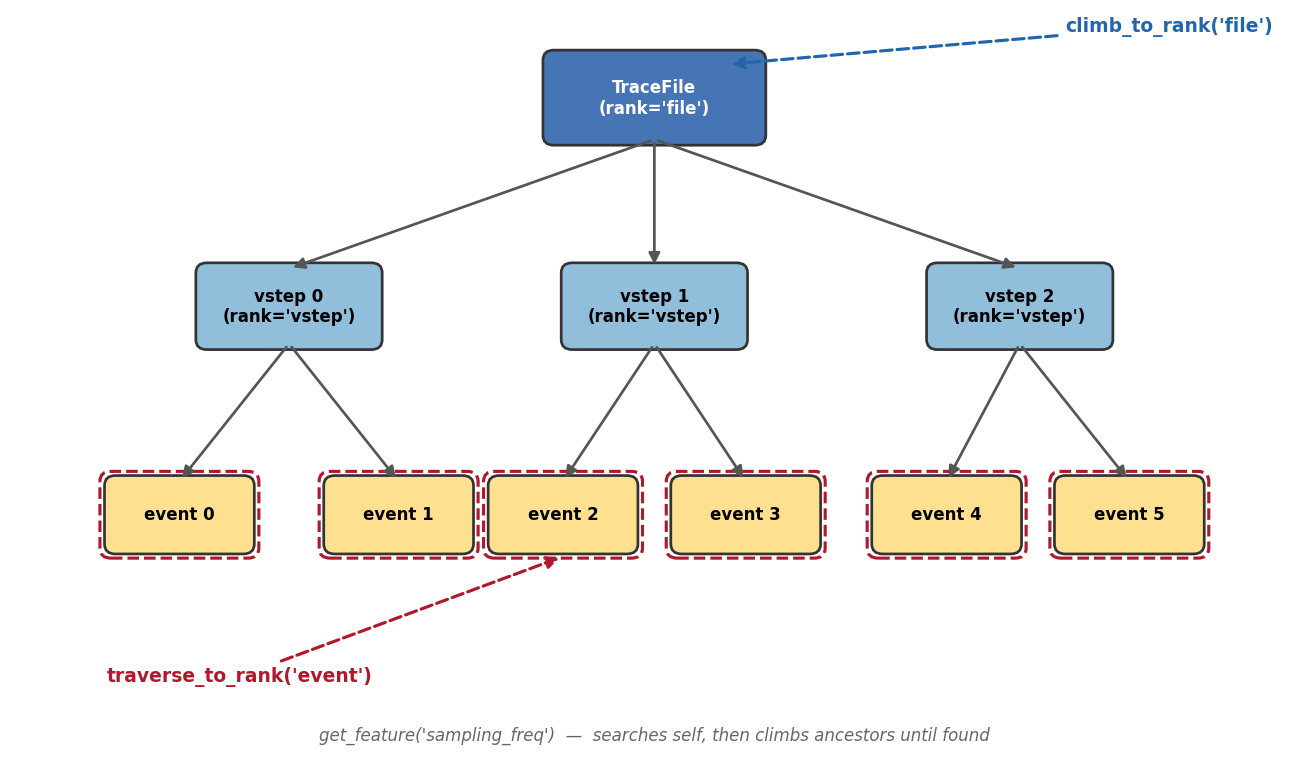

ionique represents nanopore data as a segment tree — a hierarchy of nested segments where each level has a named rank. Understanding this model is key to using the library effectively.

Segments and ranks

A segment is a contiguous slice of an ionic current trace, defined by start and end sample indices. Every segment has a rank — a string label that describes its level in the hierarchy.

Common ranks:

• "file" — the full recording (a TraceFile).

• "vstep" — a voltage step within the file.

• "vstepgap" — a trimmed voltage step (edge artifacts removed).

• "event" — a detected translocation event.

You can use any string as a rank. Parsers create children at a newrank you specify.

Segment vs MetaSegment

ionique provides two segment types optimized for different use cases:

Class	Stores	Use when
Segment	Full current array (numpy.ndarray)	You need direct access to raw signal values
MetaSegment	Only start, end, rank, and metadata	You want memory-efficient storage (thousands of events)

MetaSegment computes statistics on the fly by slicing its ancestor’s current array:

from ionique.core import Segment, MetaSegment
import numpy as np

# Segment holds its own data
seg = Segment(current=np.random.randn(1000), start=0, end=1000, rank="event")
print(seg.mean)  # computed from seg.current

# MetaSegment holds only boundaries
meta = MetaSegment(start=0, end=1000, rank="event", parent=some_file)
print(meta.mean)  # computed from parent's current[0:1000]

Convert a Segment to a MetaSegment to free memory:

seg.to_meta()
# seg is now a MetaSegment — the current array is released

Note

MetaSegment.current requires a valid parent chain up to a file-level segment. It returns None if the chain is broken.

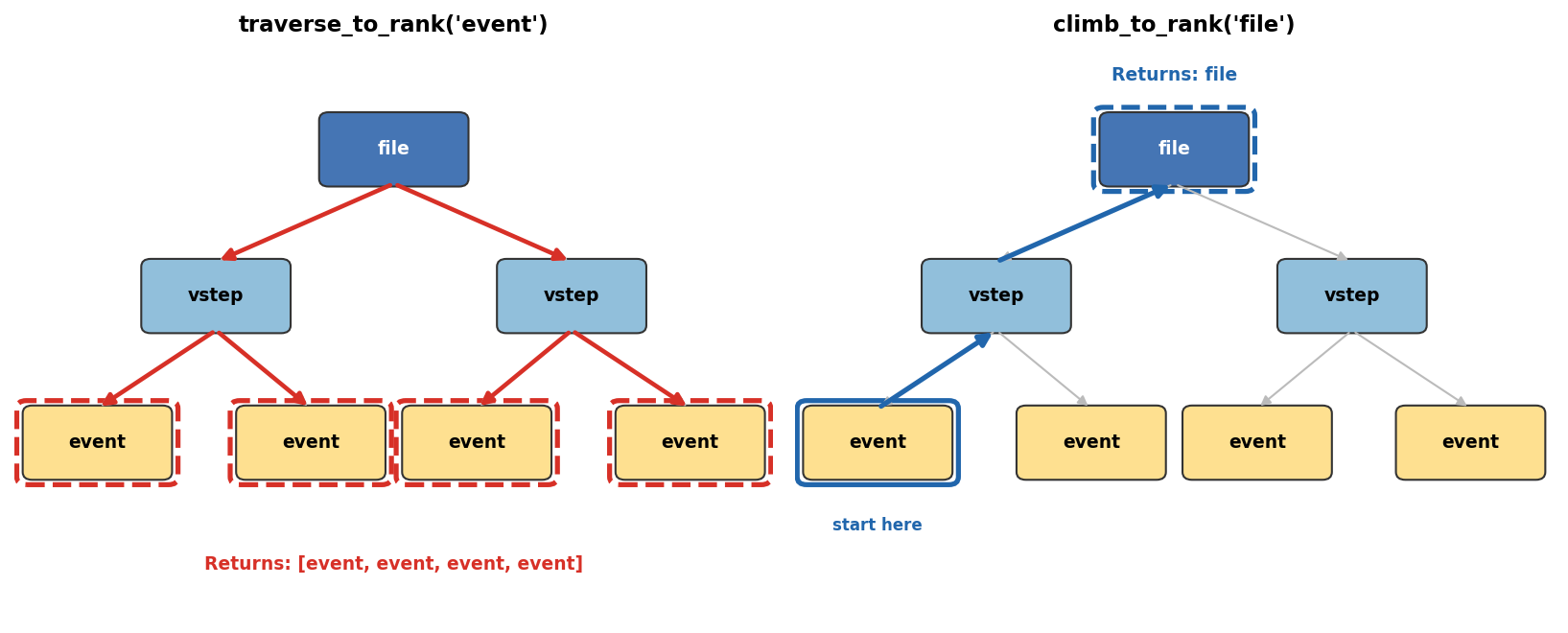

Tree traversal

Going down — traverse_to_rank(rank) recursively collects all descendants at the given rank:

# Get every event across all voltage steps
events = trace.traverse_to_rank("event")
print(f"{len(events)} events found")

Going up — climb_to_rank(rank) walks up the parent chain:

# From an event, find its parent voltage step
vstep = event.climb_to_rank("vstep")
print(f"Event belongs to vstep at samples {vstep.start}–{vstep.end}")

# Or go all the way to the file
file_seg = event.climb_to_rank("file")

Other traversal helpers:

# Get the root of the tree
root = event.get_top_parent()

# Summary of all ranks and their counts
trace.summary()
# {'file': 1, 'vstep': 5, 'event': 42}

Feature lookup

get_feature(name) searches the segment’s unique_features dictionary, then climbs to ancestors until found:

# sampling_freq is stored at the file level
trace.unique_features["sampling_freq"] = 100000

# Any descendant can access it
event = trace.traverse_to_rank("event")[0]
fs = event.get_feature("sampling_freq")  # returns 100000

This pattern avoids duplicating metadata across thousands of event segments.

You can also store per-segment features:

event.unique_features["blockade_depth"] = 0.45
event.unique_features["dwell_time"] = 0.003

Parsing: creating children

The parse() method subdivides a segment using a parser object:

from ionique.parsers import AutoSquareParser

detector = AutoSquareParser(threshold_baseline=0.7, expected_conductance=1.9)

# Detect events within each voltage step
trace.parse(detector, newrank="event", at_child_rank="vstep")

What happens:

1. parse() finds all children at rank "vstep".

2. For each vstep, the parser analyzes its current data.

3. Detected boundaries become new child segments at rank "event".

The at_child_rank parameter controls which level gets parsed. Without it, the parser runs on the segment itself.

Chaining parsers — parse at successively deeper ranks:

# First: detect blockade events
trace.parse(event_detector, newrank="event", at_child_rank="vstep")

# Then: segment sub-states within each event
trace.parse(sub_state_splitter, newrank="state", at_child_rank="event")

Building trees manually

You can construct segment trees without parsers:

from ionique.core import MetaSegment

# Create a parent
parent = MetaSegment(start=0, end=100000, rank="vstep")

# Create children
events = [
    MetaSegment(start=1000, end=1500, rank="event", parent=parent),
    MetaSegment(start=3000, end=3800, rank="event", parent=parent),
    MetaSegment(start=7000, end=7200, rank="event", parent=parent),
]
parent.add_children(events)

# Children are sorted by start position
for ev in parent.children:
    print(f"  event at {ev.start}–{ev.end}")

To remove all children at a rank and re-parse:

parent.clear_children()
parent.parse(new_parser, newrank="event")

Segment statistics

Both Segment and MetaSegment expose computed properties:

event = trace.traverse_to_rank("event")[0]

event.mean      # np.mean(current)
event.std       # np.std(current)
event.min       # np.min(current)
event.max       # np.max(current)
event.n         # number of samples
event.duration  # time span in seconds (requires sampling_freq)

These are computed on every access (not cached), so store results in variables if you need them repeatedly.

Serialization

Segments can be serialized to JSON for storage or transfer:

# To JSON string
json_str = event.to_json()

# To file
event.to_json("event_data.json")

# Reconstruct
from ionique.core import MetaSegment
restored = MetaSegment.from_json("event_data.json")
